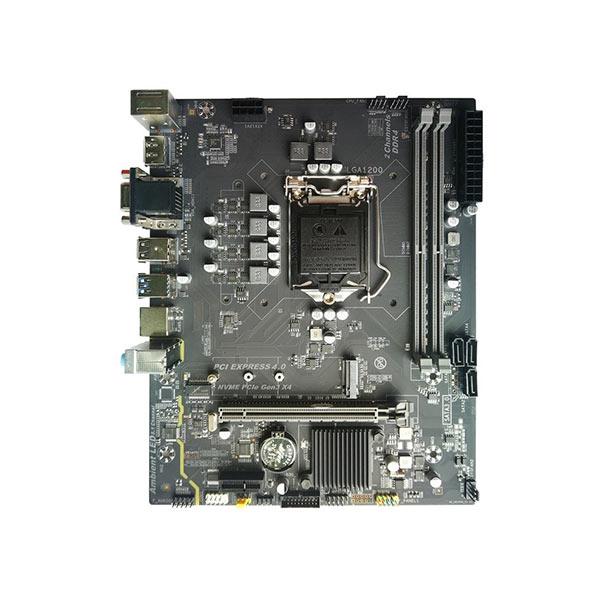

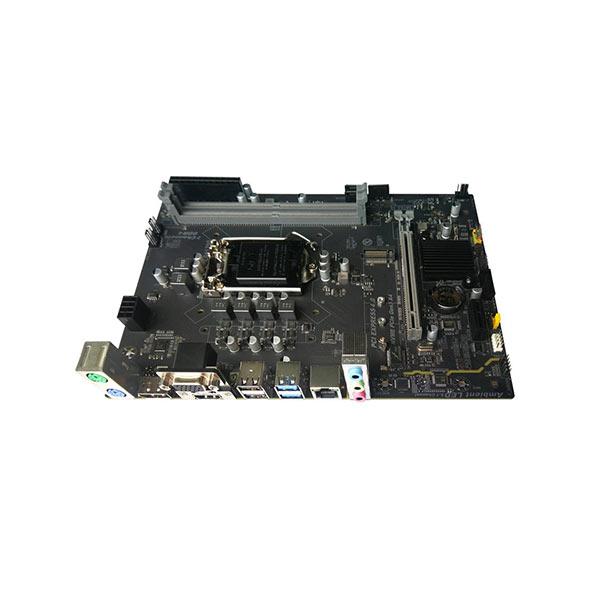

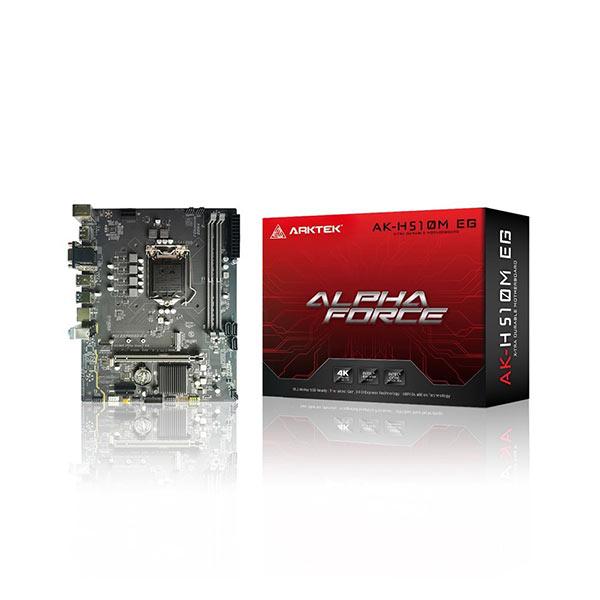

Arktek AK-H510M EG LGA1200 micro-ATX Motherboard

7,700.00৳ 7,700.00৳

Key Features

Model: AK-H510M EG
Socket: LGA1200
Chipset: Intel H510
Memory Support: Dual Channel DDR4
Warranty: 3 Years Brand Warranty
In stock
SKU: FM-2443-TUZX
Categories: Motherboard
Free Shipping
Free Shipping
For all orders over 10000 TK
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

+8801734904931

Specification



CPU SupportSupport 11th/10th generation Comet Lake-S Corei9/Corei7/Corei5/Corei3/Pentium/Celeron series processors for LGA 1200 socket
ChipsetIntel H510 Chipset
On-Board GraphicsIntegrated Graphics Processor-Intel HD Graphics support
MemoryDual Channel DDR4 2133/2400/2800MHz Support XMP overclock
DIMM2 x Memory Slots
LANRealtek 100/1000 Mbps LAN onboard
Audio3.5mm Port, 5.1 Channel, LED Audio Support
SATA3 X SATA3.0 6Gb/s M.2 (PCI-E 3.0 X4 NVME SSD
Rear I/O1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x DP port 1 x HDMI port 2 x USB 2.0 port 2 x USB 3.0 port 1 x RJ45 3 x Audio jack
Internal I/O3x USB connector, can support 4*USB 2.0 & 2*USB 3.0
Expansion Slots1 x PCI Express x16 slot 1 *PCI Express x1 slot
Form FactorMicro-ATX (22cm X 17 cm)
OS SupportSupport Windows 7 / 8 / 8.1 / 10(x64)
Mounting6 mounting holes
Accessories1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD
RemarkAll specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
Warranty3 Years Brand Warranty









Description

Arktek AK-H510M EG LGA1200 micro-ATX Motherboard

Arktek AK-H510M EG LGA1200 micro-ATX Motherboard is perfect for your computer build. It supports 11th and 10th generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors with its LGA 1200 socket. The Intel H510 chipset ensures reliable performance. This motherboard features an Integrated Graphics Processor with Intel® HD Graphics support. It has two memory slots for Dual Channel DDR4 RAM, supporting 2133/2400/2800MHz speeds and XMP overclocking.

Connectivity options include Realtek 100/1000 Mbps LAN for fast internet and a 3.5mm port for 5.1 channel audio with LED support. It has three SATA 3.0 ports for 6Gb/s and an M.2 slot for PCI-E 3.0 X4 NVME SSDs, providing ample storage options. Internal I/O includes three USB connectors, supporting up to four USB 2.0 ports and two USB 3.0 ports. Expansion is easy with one PCI Express x16 slot and one PCI Express x1 slot. The Arktek AK-H510M EG motherboard comes with a 3-year brand warranty, ensuring peace of mind. Upgrade your system with this reliable and versatile motherboard.
